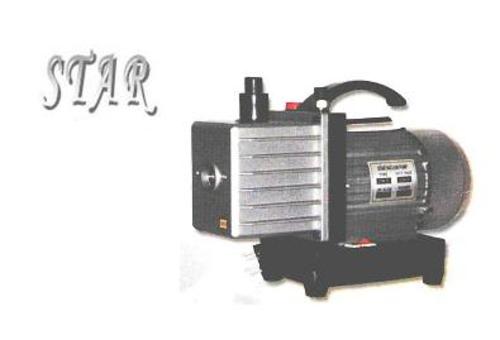

ROTARY
VAKUM POMPASI
ROTARY VAKUM POMPASININ KULLANIM ALANLARI :
Sogutma, klima, otomobil klima, florin dolgu cihazlari, bakim ve tesisatlar, fotograf kliselerinin imali, güzelsanat, grafik, basim cihazlari sanayisi
TEK Kademeli
MODEL Kapasite
M3 / h LimitVAKUM
(pa) HIZ
( rmin ) GÜC
( w ) YAG MIKTARI
( ml ) AGIRLIK
( kg ) TW -1A 1,8 10 1440 120 220 6,88 TW- 1,5A 3 10 1440 180 220 7,9
Cift Kademeli
MODEL Kapasite
M3 / hLimit
VAKUM
(pa)HIZ
( rmin ) GÜC
( w ) YAG MIKTARI
( ml ) AGIRLIK
( kg ) 2TW-0,5C 1,5 5x10-1 1440 180 250 13,8 2TW-1C 3,2 5x10-1 1440 250 250 14,5 2TW-2C 7,2 6,7x10-2 1440 370 480 20 2TW-4C 14,4 6,7x10-2 1440 550 550 22

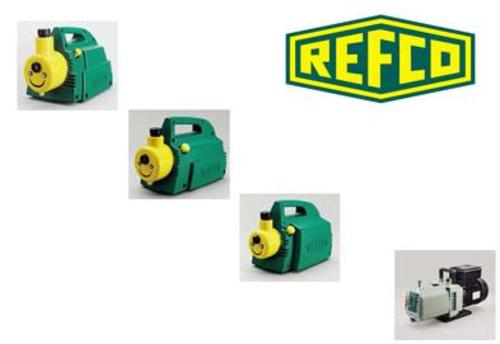

High Vacuum Pumps Refco High Vacuum Pumps
All vacuum pumps are now avaible in the unique ergonomic Refco design.Standart Features are: -Two-stage rotary vane pump -Latest deisgn and technology allows extremely compact design -Built specifically for AC/R industry -Internal oil pump with unique feature -High and materials result in low weight and top quality -Sturdy ergonomic handle stays cool to the touch -Large and easily accessible oil fill port to prevent spillage when filling -Sight glass for easy vieweing of the oil level -Built in on/off switch to prevent breakage or accidental shut off -Gas ballast valve -Easily replaceable one piece cartbridge allows exchange without special tooling -Special designed oil exhaust filter to reduce oil mist -Modern metal,rugged pump design with high quality plastic housing to absorb shocks -Extremely low point of gravity which makes tipping over in a service van nearly impossible -Swiss quality production manufactured under ISO 9001 -Recommenoil change every 20 working hours
ROTARY
VAKUM POMPASI
ROTARY VAKUM POMPASININ KULLANIM ALANLARI :
Sogutma, klima, otomobil klima, florin dolgu cihazlari, bakim ve tesisatlar, fotograf kliselerinin imali, güzelsanat, grafik, basim cihazlari sanayisi
TEK Kademeli | ||||||
| MODEL | Kapasite M3 / h | LimitVAKUM (pa) | HIZ ( rmin ) | GÜC ( w ) | YAG MIKTARI ( ml ) | AGIRLIK ( kg ) |
| TW -1A | 1,8 | 10 | 1440 | 120 | 220 | 6,88 |
| TW- 1,5A | 3 | 10 | 1440 | 180 | 220 | 7,9 |
Cift Kademeli | ||||||
| MODEL | Kapasite M3 / h | Limit VAKUM(pa) | HIZ ( rmin ) | GÜC ( w ) | YAG MIKTARI ( ml ) | AGIRLIK ( kg ) |
| 2TW-0,5C | 1,5 | 5x10-1 | 1440 | 180 | 250 | 13,8 |
| 2TW-1C | 3,2 | 5x10-1 | 1440 | 250 | 250 | 14,5 |
| 2TW-2C | 7,2 | 6,7x10-2 | 1440 | 370 | 480 | 20 |
| 2TW-4C | 14,4 | 6,7x10-2 | 1440 | 550 | 550 | 22 |
| High Vacuum Pumps | |||||||||
Refco High Vacuum Pumps | |||||||||
| All vacuum pumps are now avaible in the unique ergonomic Refco design.Standart Features are: | |||||||||
| -Two-stage rotary vane pump | |||||||||
| -Latest deisgn and technology allows extremely compact design | |||||||||
| -Built specifically for AC/R industry | |||||||||
| -Internal oil pump with unique feature | |||||||||
| -High and materials result in low weight and top quality | |||||||||
| -Sturdy ergonomic handle stays cool to the touch | |||||||||
| -Large and easily accessible oil fill port to prevent spillage when filling | |||||||||
| -Sight glass for easy vieweing of the oil level | |||||||||
| -Built in on/off switch to prevent breakage or accidental shut off | |||||||||
| -Gas ballast valve | |||||||||
| -Easily replaceable one piece cartbridge allows exchange without special tooling | |||||||||
| -Special designed oil exhaust filter to reduce oil mist | |||||||||
| -Modern metal,rugged pump design with high quality plastic housing to absorb shocks | |||||||||
| -Extremely low point of gravity which makes tipping over in a service van nearly impossible | |||||||||
| -Swiss quality production manufactured under ISO 9001 | |||||||||
| -Recommenoil change every 20 working hours | |||||||||
